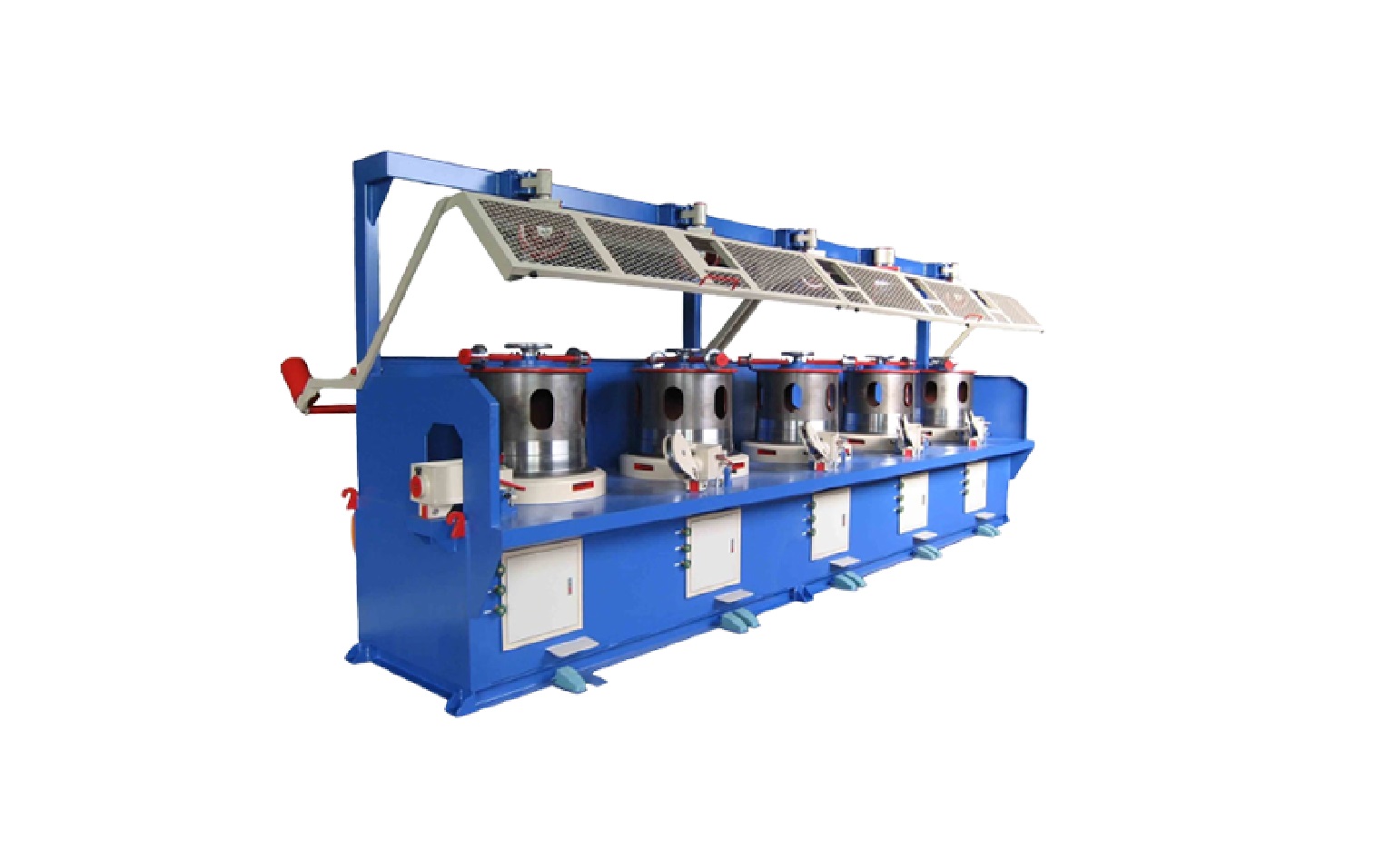

| Type | OTO Type Wire Drawing Machine |
| No. of Blocks | 6 |
| Block dia | 600mm |
| Material to be drawn | M.S Wire |
| Inlet Wire size | 6.00mm |
| Finished Wire Size | 2.55mm |
| Speed | 200 mtrs/ Min. |
| Capstan (a) Construction | Graded cast iron precision machined drawing surface Metalized and ground |
| Gear | Crown Pinion type |
| Gaurd | Provided |
| lubrication | Splash Lubrication |
| Production capacity | 4000kgs/ 1 shift 8 hours ( working basis for 2.55mm ) |
| Electrical motor | HP – 30/1, 25/2, 20/2, 15/1 – 1440 RPM, introduction type |
