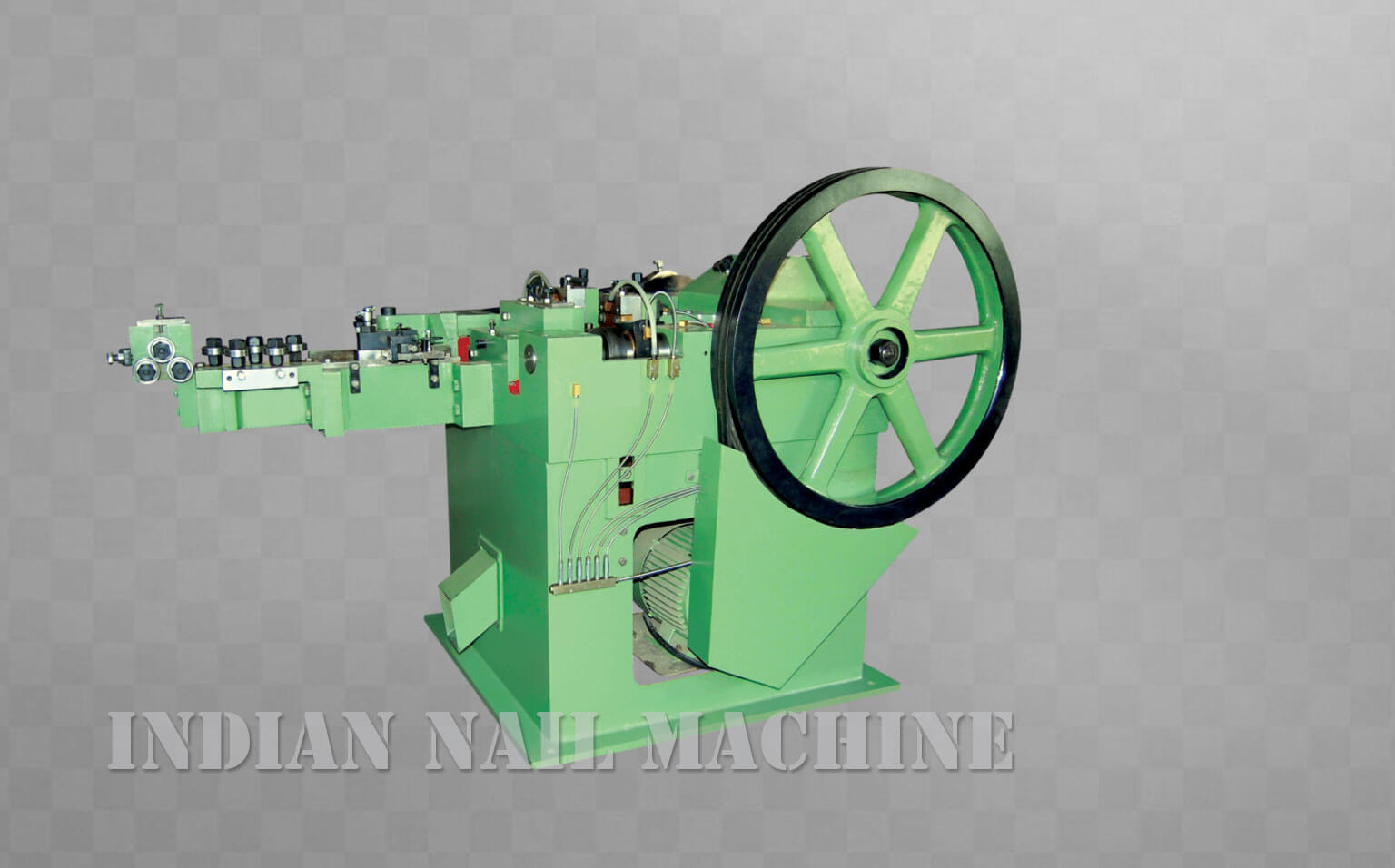

Wire Nail Machine IN4
Wire Nail Making Machine EN4 is manufactured and supplied by Super Nail Machine with high quality engineering and initiative to increase production of Nails and cost reduction of total production. Super Nail Machine uses latest technology for wire nail making machine which becomes the best in automation and electrification industry.
We manufacture and supply the best Wire Nail Making Machine EN4 in Rajkot, Gujarat. Our wire nail making machine EN4 is built with world class standard, which makes us the top Wire Nail Making Machine EN4 manufacturer in Rajkot, Gujarat.
Technical Specification
| Wire Diameter S.W.G.(mm) | 10 - 6 / (3.25 - 4.9) |
| Nail Length Inch (mm) | 1.00" - 5.00" (25 - 125) |
| Max.Nail/min | 250 |
| Power Required hp/kw | 5.0 |
| Appox. Nett Weight kgs. | 1350 |
| Appox. Gross Weight kgs. | 1500 |
| Case Size (mm) | 1315 x 1120 x 1130 |
| Appox. Floor Area (mm) | 1610 x 1020 |
Other Details
- This High Speed wire nail machines retained basic design and simple operation for Friendly use.
- Balanced critical parts results low vibration & enhance life.
- All Lubrication parts are served by centralized automated cyclic lubrication system for long life.
- A new feeding system permits the use of large wire bundle and maintains close tolerance.
- Harden ground wedge type die box for longer life and easy low cost refurbishing.
- Round indexable Gripping dies with Eleven Grooves enabling eleven times longer life without any reprocessing.
